The high capacity, feature-rich VISTA-20P lets you deliver more value to your customers on each and every sale with up to 48 zones of protection, Internet uploading/downloading, graphic keypad support and dual partitions. VISTA-20P gives you the ability to send alarm signals and upload/download via an Internet Protocol (IP), improving the speed at which information can be delivered to and from the control panel. In addition, the VISTA-20P, used with an AlarmNet® Internet or 4G communicator can be installed in premises without TELCO lines. The panel’s installation advantages, innovative end-user benefits and robust system capacity make the value-priced VISTA-20P an ideal choice for higher end installations.
Versatility, reliability and expandability are the three main features that make the N-1000 one of the most popular access control panels ever.
Expandability is the most important feature of any access control system. The N-1000 can operate as a standalone two or four door controller, and up to 31 N-1000's may be connected on an RS485 drop-line as needs increase.
Using WIN-PAKTM access control software, a total system is achieved by having each drop-line connected to a communication port, modem or ethernet terminal server. The N-1000 is designed to operate off-line, making access control decisions independently from a PC or other controlling device. It can also be connected to a host computer for system configuration, alarm monitoring and direct control. Connectivity to the host computer is accomplished via direct serial communication (RS232 or RS485), dial-up modem or TCP/IP network connection.
Another key feature of the N-1000 is its completely distributed database. All information regarding cards, time zones, relay control and alarm points is loaded into the N-1000’s memory, enabling the unit to operate completely independently of any other equipment.
The N-1000-IV-X allows for a card database of 25,000 cards and a transaction buffer capable of storing 6,600 transactions.
MS-9200UDLS (Rev 3) is a 198-point addressable fire alarm control panel and Digital Alarm Communicator/Transmitter all on one circuit board. This latest version of the MS-9200UDLS includes removable terminal blocks, 2.0A of auxillary power, connection for second ANN BUS, synchronization of up to 16 NAC power supplies and improved protection against electronic shock damage.
The JM Series features a 7” touchscreen for system navigation, door release, and viewing visitors on the large display. Hands-free and handset communication is featured on all inside stations and picture memory records images onto an SD/SDHC card. The JM Series supports up to 8 inside stations for internal communication and 4 door stations.
The AVS HD 3MP IP cameras come standard with WDR (Wide Dynamic Range) features which make it possible to display the wide range of light from shadow to sunlight in one clear image. As the pictures show, different light levels can cause extremely noticeable picture quality differences. Different levels of light are difficult for most IP cameras to handle due to the iris’s inability to process the image effectively. Outside pictures can also be a victim and affected by area with different lighting and glares. Backlight Compensation is an important feature needed to produce clear images around the clock and in different situations.
1200Mbps 802.11ac Dual Band Ceiling Mount Wireless Access Point
The WDAP-C7200AC supports IEEE 802.11a/b/g/n/ac dual band standards with 2T2R MIMO technology; therefore, it provides the wireless speed up to 300+867Mbps, which is 16X faster than the 11a access point at 5GHz frequency and 5.5X faster than the 11g access point at 2.4GHz frequency. Moreover, the WDAP-C7200AC is equipped with Gigabit Ethernet Port. Compared with the general wireless APs, the WDAP-C7200AC offers faster transmission speed for the network applications and less interference to enhance data throughput. The incredible wireless speed makes it ideal for handling multiple HD movie streams, high-resolution on-line games, stereo music, VoIPs and data streams at the same time stably and smoothly.

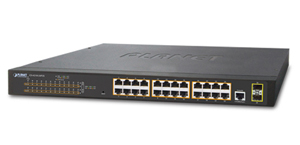

24-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch
PLANET GS-4210-24P2S is an ideal Gigabit PoE Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price. The GS-4210-24P2S is equipped with 24 10/100/1000Base-T Gigabit Ethernet ports and 2 100/1000Base-X SFP interfaces with inner power system. Its 24 Gigabit Ethernet ports integrated with 802.3at PoE+ injector function on all ports. It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.
The PoE in-line power following the IEEE 802.3at/af standard makes the GS-4210-24P2S able to deliver Gigabit speed data and up to 30 watts of power per port to 24 PoE compliant powered devices (PDs) with a combined power output budget of up to 300 watts. The GS-4210-24P2S provides more flexibility in power requirement for all kinds of PDs with affordable installation costs.
Atlas Sound AA120 amplifier is a powerful 120 Watt amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment.
This 6 input unit features extensive muting and output options along with a very unique bridge in/out feature to allow combining of multiple amplifiers in ballroom applications without the need for external relays.
VCA control port may be assigned to the BGM input or globally for the entire amplifier. Optional VCA control AAVC-10K.
Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts as well as an 8 ohm transformer bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" polypropylene driver. In fact, the high frequency response of the FAP40T is so natural that many would assume that the driver in the FAP40T was a coaxial design instead of a single cone driver. Low frequency response is enhanced by the tuned and ported enclosure design. The enclosure (UL1480 pending) is constructed of high impact injection molded plastic and includes a press fit grill design that blends quite well with contemporary architecture. A two pole terminal strip housed below a metal removable cover on the back of the FAP40T enclosure allows for easy system wiring as well as "daisy chain" wiring to other FAP40T's or even FASUB70 subwoofers (a great combination!).
The Sharp® AQUOS 4K Ultra HD is held to a higher standard of picture performance. With four times the pixel resolution of full HD, everything you watch on the THX 4K-certified AQUOS 4K Ultra HD LED TV is four times sharper and more realistic. It’s not just amazing—it’s certified amazing.
Cloning Function: Copy configuration settings from one projector to others of the same model via USB memory. Cloning can save almost all PJ settings such as gamma and keystone via USB memory.
ImageCare Technology: ImageCare is a lamp power control function that combines optimal picture performance with maximum energy savings by decreasing energy usage, improving contrast ratio and lengthening lamp life. The result is a lower total cost of ownership and decreased maintenance cost.
Intelligent Eco and Saver Modes: Automatically changes the brightness of the lamp according to the brightness level of the screen. Also, automatically changes the brightness of the lamp if there is no change in the screen image. Using ImageCare technology, these features give optimal picture performance with maximum energy savings.
Projector Quick Connection App For Mobile Devices: Our iOS application offers full projector control and also provides the capability to display photos, document files and web site contents. Available for iPad®, iPhone® and Android devices. Works over your LAN via your RJ-45 port or via an optional USBWL11N wireless adapter
Wired and Wireless Switcher Solutions: Multifunctional switcher operates in conjunction with the receiver to provide expanded source selection and switching options for connected devices. The switcher is sold as an optional accessory that can provide 1080p 30 fps wireless via WHDI for both video and audio.
Input Source Naming: Users can rename input sources in more descriptive terms instead of the factory default names.
Microphone Input: A microphone can be used via the jack located on the input panel. Allows for more dynamic presentations even in standby mode.
Network Control, Maintenance and Security: Embedded networking gives you the ability to manage and control multiple projectors over your LAN. Features include scheduling of events, centralized reporting, image transfer and e-mail alerts for reactive and routine maintenance.
PC-Less Presentation: By using a USB memory stick or other storage device, you can use the projector without a computer. Menus are easy to see with a thumbnail display. There is also a slideshow function. This feature also supports the following file types: JPG, PNG, BMP, GIF, AVI, and MOV — frame rate is under 12fps 640 x 480.
PIN Lock / MyScreen / MyText: PIN lock protection can limit projector users. MyScreen PIN lock keeps captured images on the startup screen. Users can set any name logo to MyScreen, clearly identifying ownership. MyText provides the ability to write text on the startup screen such as model name, serial number or location.
PJMessenger: PJMessenger function allows you to send and display text messages and audio alerts on your networked projectors. It is an easy and efficient way to send announcements out to multiple units.
Present Content via LAN: Hitachi’s suite of networking software allows you to easily send content directly from your PC to the projector via your LAN connection.
Serial Number and Media Access Control Label: A label is affixed to side of projector to more easily access and read the model name, serial number and MAC address while mounted in ceiling use. This is a convenience for installers, end users and auditors for instant accessibility.
Wireless Presentation Compatible: Connect the projector to a a computer or your network using the optional USB wireless adapter (part number USBWL11N). The adapter supports IEEE802.11b/g and the latest 11n.
